Ubiquiti AmpliFi HD Kit - AFi-HD

Ubiquiti AmpliFi HD Kit – AFI-HD

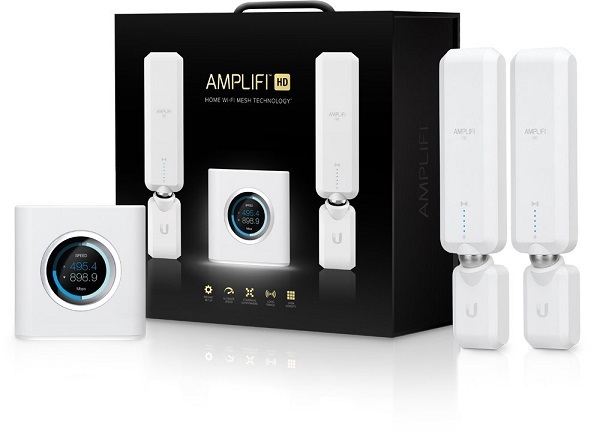

The Ubiquiti AmpliFi HD Kit (AFI-HD) is a residential mesh Wi-Fi system designed to provide maximum coverage throughout your home. This kit includes a smart router with LCD display and two pre-configured AmpliFi HD Mesh Points for plug-and-play setup. Monitor network metrics and manage your system effortlessly using the AmpliFi mobile app for iOS and Android.

Key Features

• Whole-Home Mesh Wi-Fi: Extend coverage with two included HD Mesh Points
• Smart LCD Display: Check current and total throughput at a glance
• Plug-and-Play Setup: Mesh Points pre-configured to the router
• Mobile App Management: AmpliFi app available for iOS and Android for instant setup and monitoring
• Tri-Polarity Dual-Band Antennas: Optimized coverage and signal strength indicators on Mesh Points
• High Performance: Up to 5.25 Gbps aggregate speed across the mesh network
• Robust Security: WPA2-PSK AES/TKIP encryption
• Environmental Protection: ESD/EMP protection up to ±24 kV air/contact
• Operating Range: -10 to 55°C, 5–95% non-condensing humidity

Router Specifications

• Dimensions: 99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92")
• Weight: 410 g (14.46 oz)
• Max TX Power: 26 dBm
• Radios: 2
• MIMO Chains: 6
• Speed: 1750 Mbps
• Networking Interface: 1x WAN, 4x LAN (Gigabit Ethernet)
• Power Consumption: 11 W
• Display: 40.6 mm (1.6") diagonal, 240x240, G+F touch, full color
• Wi-Fi Standards: 802.11ac
• Security: WPA2-PSK AES/TKIP
• Buttons: Reset
• Antennas: 1 dual-band, tri-polarity
• Certifications: FCC / CE / IC

MeshPoint Specifications

• Dimensions: 243.83 x 54 x 57.75 mm (9.60 x 2.13 x 2.27")
• Weight: 224 g (7.90 oz)
• Max TX Power: 26 dBm
• Radios: 2
• MIMO Chains: 6
• Speed: 1750 Mbps
• Antennas: 1 dual-band, tri-polarity
• Wi-Fi Standards: 802.11ac
• Security: WPA2-PSK AES/TKIP
• Buttons: Reset
• Operating Temperature: -10 to 55°C
• Operating Humidity: 5–95% non-condensing
• Certifications: FCC / CE / IC

Supported Data Rates (Mbps)

• 802.11ac: 13–1300 Mbps (MCS0–MCS9, VHT 20/40/80)
• 802.11n: 6.5–450 Mbps (MCS0–MCS23, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
