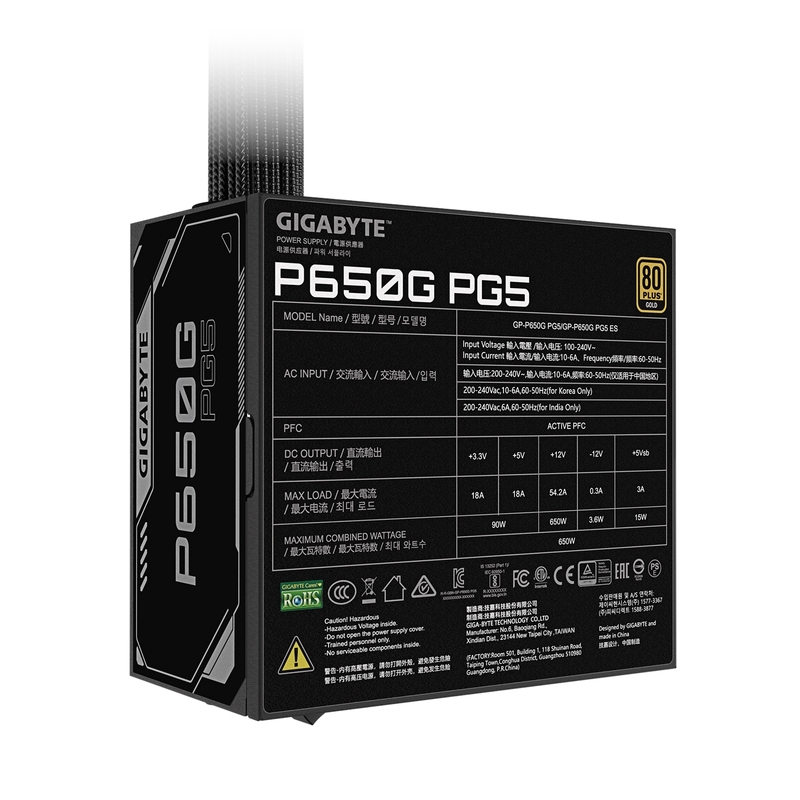

Gigabyte P650G PG5 Gold Modular PSU

Gigabyte P650G PG5 650W 80+ Gold Fully Modular ATX 3.1 Power Supply

The Gigabyte P650G PG5 is a high-efficiency fully modular power supply designed for modern desktop systems. Built to the latest ATX 3.1 standard, it supports next-generation graphics cards with a native PCIe Gen 5.1 16-pin connector while delivering reliable and stable power with 80 PLUS Gold efficiency.

• Power Output: 650W Continuous Power
• Efficiency Rating: 80 PLUS Gold (up to 90% efficiency)
• ATX Standard: ATX 12V v3.1
• PCIe Support: Native PCIe Gen 5.1 16-pin (12VHPWR) connector
• Additional PCIe: 2 x 6+2-pin PCIe connectors
• Rail Design: Single powerful +12V rail
• Cooling: 120mm Hydraulic Bearing fan with intelligent speed control
• Power Factor: Active PFC (>0.9 typical)
• Input Voltage: 100–240V AC
• Input Frequency: 50–60Hz
• MTBF: 100,000 hours
• Operating Temperature: Up to approximately 40°C

Connectors

• 1 x 20+4-pin ATX motherboard connector
• 1 x 4+4-pin CPU (EPS) connector
• 1 x PCIe Gen 5.1 16-pin (12VHPWR)
• 2 x 6+2-pin PCIe
• 6 x SATA power connectors
• 3 x 4-pin peripheral (PATA)

Features

• Fully modular all-black flat cables for clean cable management
• High quality internal components including Japanese capacitors
• Low noise operation with intelligent fan control
• Comprehensive protection: OVP, OPP, SCP, UVP, OCP, OTP
• Power Good Signal: 100–150ms
• Hold-up Time: 17ms

The Gigabyte P650G PG5 is ideal for gaming PCs and performance builds requiring efficient, stable power delivery and compatibility with the latest PCIe Gen 5 graphics cards.
