Gigabyte H810M S2H (Socket 1851/H810 Express/DDR5/S-ATA 6Gb/s/Micro ATX)

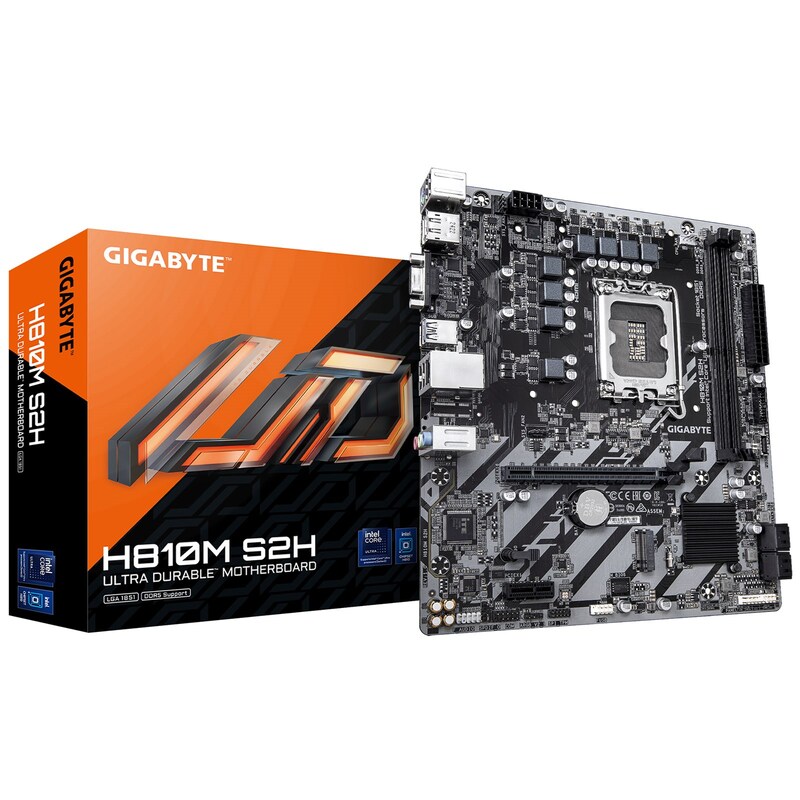

Gigabyte H810M S2H DDR5 Micro-ATX Motherboard

The Gigabyte H810M S2H is a Micro-ATX motherboard designed for Intel 14th/13th Gen Core Ultra processors (Socket 1851) with DDR5 memory support, PCIe 4.0 M.2 storage, multiple display outputs, and Gigabit LAN. Ideal for compact high-performance systems and productivity builds.

• CPU Support: Intel Core Ultra Series 2 processors (Socket 1851) Compatibility List
• Chipset: Intel H810 Express
• Memory:
  • 2 x DDR5 DIMM slots (288-pin)
  • Dual channel architecture
  • Supports DDR5 speeds up to 6400 MHz
  • Maximum capacity: 128GB
• Expansion Slots:
  • 1 x PCIe 4.0 x16 slot
  • 1 x PCIe 3.0 x1 slot
• Storage:
  • 1 x M.2 PCIe Gen4 x4 slot
  • 4 x SATA 6Gb/s ports (RAID 0/1/5/10 support)
• Graphics Outputs:
  • 1 x HDMI port
  • 1 x DisplayPort
  • Processor integrated graphics required
• LAN: Realtek GbE LAN (1 Gbps)
• Audio: Realtek Audio CODEC, 2/4/5.1/7.1-channel HD Audio
• USB Ports:
  • Back: 1 x USB 3.2 Gen1 Type-A, 5 x USB 2.0
  • Internal headers: 1 x USB 3.2 Gen1, 1 x USB 2.0
• Internal Connectors:
  • 1 x 24-pin ATX power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x TPM header
  • 2 x Addressable RGB Gen2 LED headers
  • 1 x COM port header
  • 1 x Front panel audio connector
  • 1 x S/PDIF out header
• Form Factor: Micro ATX (215 x 244 mm)
• Special Features:
  • Hybrid 4+1+2 phase VRM design
  • EZ-Latch PCIe x16 quick release slot
  • Multi-theme BIOS UI with Q-Flash Auto Scan
  • PCIe 4.0 M.2 connectors for next-gen storage
  • GbE LAN and extended connectivity (HDMI, DisplayPort)
• Package Contents: Motherboard, Manual, Quick Installation Guide, 2 x SATA cables, I/O shield
