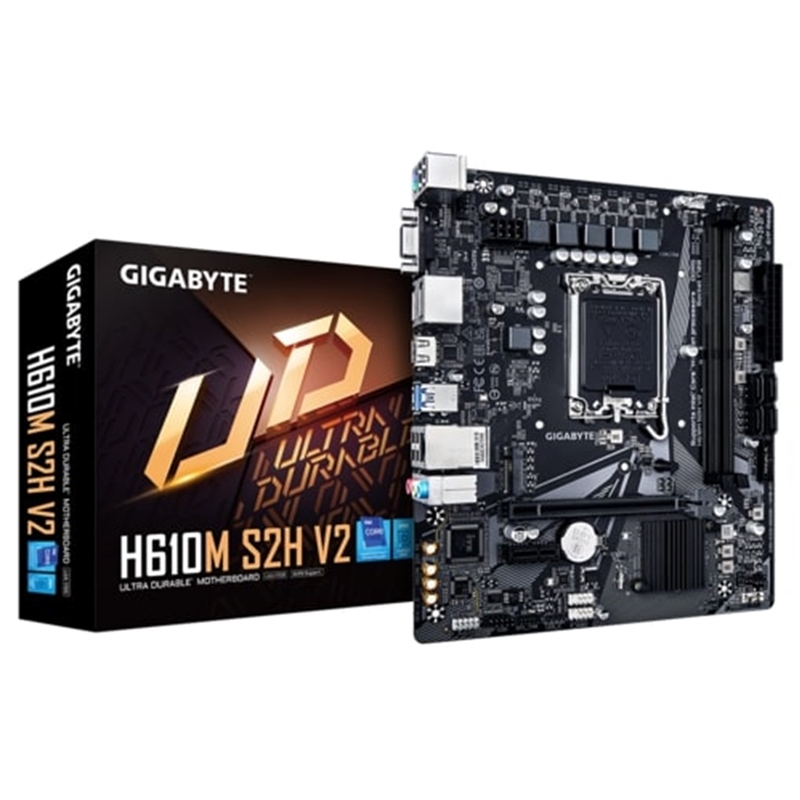

Gigabyte H610M S2H V2 Intel LGA 1700 Micro-ATX Motherboard

Gigabyte H610M S2H V2 Intel LGA 1700 Micro-ATX Motherboard

The Gigabyte H610M S2H V2 is a compact Micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen Core processors. Featuring dual-channel DDR5 support, PCIe 4.0, NVMe M.2, multiple display outputs, and Smart Fan 6, it’s ideal for performance-oriented desktops in a small form factor.

• CPU Support: Intel 12th, 13th & 14th Gen Core, Pentium Gold, Celeron (LGA1700)
• Power Design: 4+1+1 Hybrid Digital VRM
• Memory:
  • 2 x DDR5 DIMM slots supporting up to 128GB (64GB per DIMM)
  • Supports ECC and non-ECC unbuffered DIMMs
  • Dual-channel architecture, XMP support
• Chipset: Intel H610
• Expansion Slots:
  • 1 x PCIe 4.0 x16 slot
  • 1 x PCIe 3.0 x1 slot
• Storage:
  • 1 x M.2 Socket 3 (PCIe 3.0 x4/x2, 2280/2260 support)
  • 4 x SATA 6Gb/s connectors
• Graphics Outputs:
  • 1 x D-Sub (1920x1200@60Hz)
  • 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)
  • 2 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3)
• Audio: Realtek HD Audio CODEC, supports 2/4/5.1/7.1 channels, Audio Noise Guard
• LAN: Realtek GbE LAN (1 Gbps)
• Back Panel I/O:
  • 1 x PS/2 keyboard/mouse
  • 1 x D-Sub
  • 1 x HDMI
  • 2 x DisplayPort
  • 2 x USB 3.2 Gen1
  • 4 x USB 2.0/1.1
  • 1 x RJ-45 LAN
  • 3 x Audio jacks
• Internal I/O Connectors:
  • 1 x 24-pin ATX power, 1 x 8-pin ATX 12V
  • CPU fan header, 2 x system fan headers
  • 1 x M.2 Socket 3, 4 x SATA 6Gb/s
  • RGB LED strip header
  • Front panel, audio, speaker headers
  • 1 x TPM header, 1 x serial port, Clear CMOS jumper, chassis intrusion header
  • USB 3.2 Gen1 header, 2 x USB 2.0/1.1 headers
• H/W Monitoring: Voltage, temperature, fan speed, water cooling flow detection, fan fail warning, fan speed control
• BIOS: 128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, ACPI 5.0, SMBIOS 2.7
• Unique Features: Smart Fan 6, Anti-Sulfur Resistors, APP Center (EasyTune, Smart Backup, System Info Viewer, Q-Flash), Ambient LED
• Bundled Software: Norton Internet Security (OEM), LAN bandwidth management software
• Form Factor: Micro ATX, 22.3 x 19.6 cm
• OS Support: Windows 10/11 64-bit

Highlights: Dual DDR5 slots with up to 128GB support, multiple display outputs (HDMI + DisplayPorts + D-Sub), NVMe M.2, Smart Fan 6, and anti-sulfur resistor design ensure reliability, expandability, and smooth performance in compact desktop builds.
