Asrock B760 PRO RS, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, eDP, 2.5G LAN, PCIe5, 3x M.2, RGB

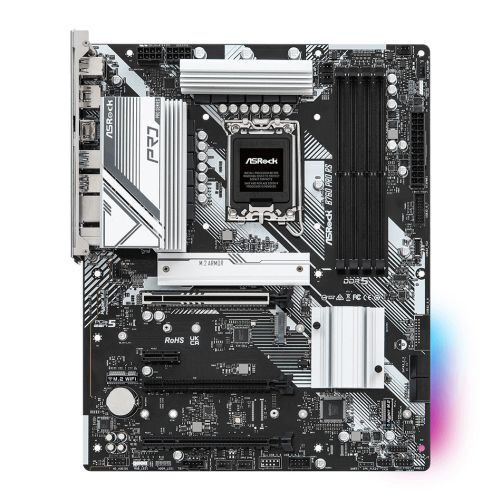

ASRock B760 PRO RS ATX DDR5 Motherboard

The ASRock B760 PRO RS is a high-performance ATX motherboard designed for Intel 12th & 13th Gen Core processors (LGA1700), offering DDR5 memory support, PCIe 5.0 graphics, multiple M.2 slots, and robust 2.5Gb LAN connectivity for gaming and productivity systems.

• CPU Support: Intel 13th / 12th Gen Core Processors (LGA1700)
• Chipset: Intel B760
• Power Design: 10+1+1 Phase Dr.MOS for VCore + GT
• Memory:
  • 4 x DDR5 DIMM slots, Dual Channel
  • Supports DDR5 up to 7200MHz (OC)
  • Trouble-free DDR5 protection circuits
  • Maximum memory: 128GB
• Expansion Slots:
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x1
  • 1 x M.2 Key E slot for WiFi module
• Storage:
  • 2 x Hyper M.2 PCIe Gen4x4
  • 1 x M.2 PCIe Gen4x2
  • 4 x SATA3 6Gb/s ports
• Graphics Outputs:
  • HDMI, DisplayPort, eDP
• LAN: Dragon 2.5Gbps LAN
• Audio: Realtek ALC897 7.1 CH HD Audio with Nahimic Audio support
• USB Ports:
  • Rear: 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1, 2 x USB 2.0
  • Front: 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1
• Special Features:
  • Pre-installed I/O shield
  • ASRock Auto Driver Installer
  • PCIe Gen5 support for next-gen GPUs
  • USB 3.2 Gen2 Type-C front + rear (10Gbps)
  • DDR5 Protection Circuitry
• Form Factor: ATX (305 x 244 mm)
