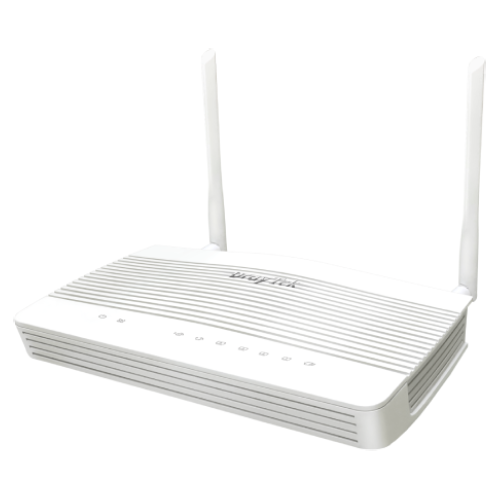

Draytek Vigor 2136ax Wireless FTTP Router

DrayTek Vigor 2136ax Wireless FTTP Router

The DrayTek Vigor 2136ax is a high-performance Dual-WAN WiFi 6 router designed for FTTP Fibre Broadband. It combines advanced security, VPN support, and AX3000 wireless performance to deliver reliable connectivity for SMBs, home offices, and remote workers.

Key Features

• 2.5 Gigabit WAN Interfaces: Ideal for FTTP connections, delivering up to 2.3 Gbps firewall throughput for maximum broadband performance.
• AX3000 WiFi 6: Dual-band wireless provides high-speed, low-latency connectivity for 4K streaming, video conferencing, and gaming.
• Robust VPN Support: Four LAN-to-LAN and remote teleworker VPN tunnels with OpenVPN and WireGuard for secure remote access.

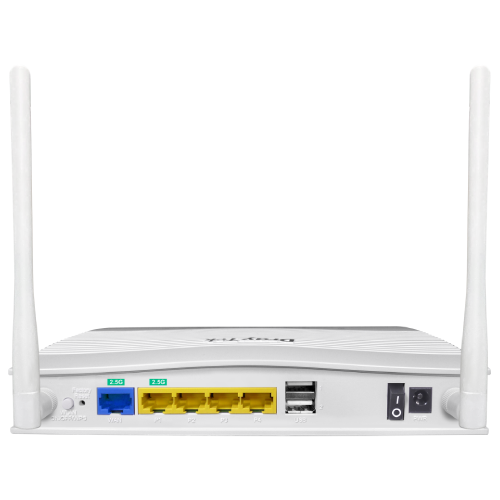

• LAN Ports: 1x 2.5G LAN + 3x Gigabit LAN ports with VLAN support for up to 4 separate networks.
• Identity & Access Management (IAM): Control access to local resources using policies, MFA, and external authentication methods.
• Firewall & Content Filtering: SPI firewall and granular content control for secure network operation.
• Virtual Controller: Manage connected DrayTek switches and APs locally for simplified network administration.
• VigorACS Compatibility: Centralized management and monitoring across multiple sites.

Technical Specifications

• WAN Interfaces: 2x 2.5 Gigabit Ethernet (Dual-WAN)
• LAN Interfaces: 1x 2.5 Gigabit LAN, 3x Gigabit LAN
• WiFi: Dual-band AX3000 WiFi 6
• VPN: 4x LAN-to-LAN & Remote VPN Tunnels, OpenVPN, WireGuard
• Firewall: SPI, Content Filtering
• VLANs: 4 LAN subnets (Port-based / 802.1q)
• Throughput: Firewall up to 2.3 Gbps, IPsec VPN up to 390 Mbps
• Management: Local Virtual Controller, VigorACS Central Management Platform
• Warranty: 2 Years Standard
